LOW VF肖特基

低压降肖特基

产品概述

沃尔德 LOW VF肖特基二极管采用先进的Trench工艺，具有较低的VF值和极低的高温漏电流，能更好的满足电源产品的高效率，高可靠性的需求。

产品特点

VF值

较低的VF值

漏电流

极低的高温漏电流

封装

多种封装，满足各类电源需求

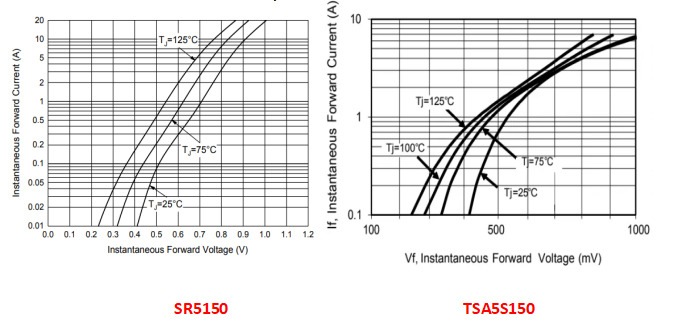

产品曲线图

上图的曲线和数据显示，采用Trench工艺的肖特基二极管在相同电流的情况下比采用STD工艺的肖特基二极管的VF值要低，具有更精细的小电流、高开关速度和良好的线性特性。

应用领域

工业电源

医疗电源

LED电源

PD快充

适配

产品选型

Type	Current	Voltage	Package	Application	VF @25℃	VF @125℃	IR(uA) 25℃	IR(mA) 125℃	IFSM (A)	Tj （℃）	Download
TSP3L40FL	3	40	SOD-123	5V/0.2A	0.45@3A	0.34@3A	100	100	55	-55 to +150
TSP3P40FL	3	40	SOD-123	5V/0.2A	0.42@3A	0.35@3A	80	20	55	-55 to +150
TSP3L100A	3	100	SMA	12V/0.5A	0.55@3A	0.49@3A	50	5	60	-55 to +150
TSP3L100AF	3	100	SMAF	12V/0.5A	0.78@3A	0.66@3A	50	5	50	-55 to +150
TSP3S150AF	3	150	SMAF	24V0.5A	0.78@3A	0.75@3A	50	5	70	-55 to +150
TSP3L40AF	3	40	SMAF	5V/0.5A	0.45@3A	0.34@3A	200	20	55	-55 to +150
TSA3L100E	3	100	DO-15	12V/0.5A	0.75@3A	0.71@3A	10	10	60	-55 to +150
TSA3L40E	3	40	DO-15	5V/0.5A	0.39@3A	0.32@3A	100	100	50	-55 to +150
TSA3L40	3	40	DO-201AD	5V/0.5A	0.45@3A	0.34@3A	200	20	60	-55 to +150
TSP5L45AF	5	45	SMAF	5V/1A	0.46@5A	0.38@5A	100	30	80	-55 to +150
TSP5L60AF	5	60	SMAF	9V/1A	0.44@5A	0.25@1A	200	50	80	-55 to +150
TSP5S45AF	5	45	SMAF	5V/1A	0.41@5A	0.35@5A	100	10	120	-55 to +150
TSP5V100AF	5	100	SMAF	12V/1.2A	0.52@5A	0.36@2A	50	40	120	-55 to +150
TSP5L100AF	5	100	SMAF	12V/1A	0.69@5A	0.78@5A	200	15	80	-55 to +150
TSP5L60B	5	60	SMB	9V/1A	0.44@5A	0.38@5A	100	15	80	-55 to +150
SU545B	5	45	SMB	5V/1.2A	0.43@5A	0.38@5A	10	10	120	-55 to +150
TSP5L45B	5	45	SMB	5V/1A	0.46@5A	0.38@5A	50	15	80	-55 to +150
TSP5L80B	5	80	SMB	12V/1A	0.46@2.5A	0.41@2A	10	3	80	-55 to +150
TSP5V150B	5	150	SMB	24V/1A	0.71@5A	0.65@5A	10	5	120	-55 to +150
TSP5S150B	5	150	SMB	24V/1A	0.88@5A	0.43@1A	50	10	180	-55 to +150
TSP5V100B	5	100	SMB	12V/1A	0.65@5A	0.58@5A	50	5	120	-55 to +150
TSP5V80B	5	80	SMB	12V/1A	0.46@1A	0.35@1A	50	40	120	-55 to +150
TSP5L100B	5	100	SMB	12V/1A	0.70@5A	0.65@5A	80	5	80	-55 to +150
TSP5P150B	5	150	SMB	24V/0.5A	0.7@2A	0.65@2A	1	5	180	-55 to +175
TSP5S45BF	5	45	SMBF	5V/1A	0.41@5A	0.35@5A	100	10	120	-55 to +150
TSP5P150SP	5	150	TO-277	24V/0.5A	0.7@2A	0.65@2A	1	5	180	-55 to +175
TSP5L100SP	5	100	TO-277	12V/1A	0.65@5A	0.36@1.25A	200	15	80	-55 to +150
TSP5V120SP	5	120	TO-277	24V/1.2A	0.70@5A	0.38@1A	50	40	120	-55 to +150
TSP5S150SP	5	150	TO-277	24V/1A	0.88@5A	0.43@1A	50	10	180	-55 to +150
TSP5L80SP	5	80	TO-277	12V/1A	0.62@5A	0.35@1A	30	50	80	-55 to +150
TSP5A300P6	5	300	SMP6	42V/1A	0.89@5A	0.71@1A	5	0.2	80	-55 to +150
TSP5L300P6	5	300	SMP6	42V/1A	0.84@5A	0.66@1A	5	0.2	100	-55 to +150
TSA5L100	5	100	DO-201AD	12V/1A	0.65@5A	0.36@1.25A	200	15	80	-55 to +150
TSA5L150	5	150	DO-201AD	24V1A	0.51@2A	0.46@2A	1	5	150	-55 to +150
TSA5L200	5	200	DO-201AD	24V/1A	0.84@5A	0.68@3A	2	0.08	100	-55 to +150
TSA5L300	5	300	DO-201AD	42V/1A	0.85@5A	0.78@5A	5	0.08	100	-55 to +150
TSA5L45	5	45	DO-201AD	5V1A	0.50@5A	0.45@5A	30	5	150	-55 to +150
TSA5L60	5	60	DO-201AD	9V/1A	0.50@5A	0.27@1A	200	50	80	-55 to +150
TSA5L80	5	80	DO-201AD	12V/1A	0.65@5A	0.45@2A	20	10	80	-55 to +150
TSA5V100	5	100	DO-201AD	12V/1.2A	0.52@5A	0.36@2A	50	40	120	-55 to +150
TSA5S150	5	150	DO-201AD	24V/1A	0.88@5A	0.80@5A	50	10	180	-55 to +150
TSA5V45	5	45	DO-201AD	5V/1.2A	0.41@5A	0.35@5A	100	10	120	-55 to +150
TSA5V60	5	60	DO-201AD	9V/1.2A	0.46@5A	0.27@1A	100	20	120	-55 to +150
TSA5L40	5	40	DO-201AD	5V/1A	0.45@5A	0.21@1A	200	50	100	-55 to +150
TSA6L45	6	45	DO-201AD	5V/1.5A	0.47@6A	0.30@2A	50	10	100	-55 to +150
TSA6L60	6	60	DO-201AD	9V/1.5A	0.48@6A	0.31@2A	30	10	100	-55 to +150
TSP8L60SP	8	60	TO-277	9V/1.5A	0.48@8A	0.27@2A	100	100	180	-55 to +150
TSP8L60P6	8	60	SMP6	5V1A	0.36@2A	0.28@2A	10	20	150	-55 to +150
TSR8T600CTB	8	600	TO-263	5V1.5A	2.00@4A	1.32@4A	1	0.03	80	-55 to +150
TSA8L300	8	300	DO-201AD	42V/1.5A	0.85@8A	0.65@2A	5	0.08	160	-55 to +150
TSA8L60	8	60	DO-201AD	9V/2A	0.48@8A	0.27@2A	100	100	180	-55 to +150
TSA8A45	8	45	DO-201AD	5V1A	0.40@2A	0.35@2A	50	10	150	-55 to +150
TSP10L80B	10	80	SMB	12V/2A	0.47@2A	0.39@2A	30	20	110	-55 to +150
TSP10L100SP	10	100	TO-277	12V/1.5A	0.64@10A	0.32@1.5A	60	40	160	-55 to +150
TSP10L45SP	10	45	TO-277	5V/1.5A	0.32@5A	0.26@2A	85	8	220	-55 to +150
TSP10V150SP	10	150	TO-277	20V/1.5A	0.81@10A	0.42@1A	10	10	230	-55 to +150
TSP10V60SP	10	60	TO-277	9V/1.5A	0.47@10A	0.36@5A	100	20	260	-55 to +150
TSP10L200SP	10	200	TO-277	24V/1A	0.87@10A	0.77@10A	5	0.08	180	-55 to +150
TSP10L60SP	10	60	TO-277	5V2A	0.38@2A	0.35@2A	100	20	120	-55 to +150
TSP10A100SP	10	100	TO-277	12V2A	0.40@1A	0.36@1A	20	40	180	-55 to +150
TSP10V120SP	10	120	TO-277	18V/1.5A	0.7@10A	0.38@2A	50	10	180	-55 to +150
TSP10A80SP	10	80	TO-277	12V1.5A	0.43@1A	0.38@1A	50	10	180	-55 to +150
TSP10L300SP	10	300	TO-277	42V/1.8A	0.86@10A	0.73@10A	20	40	200	-55 to +150
TSP1045SP	10	45	TO-277	5V/1.5A	052@10A	0.29@2A	50	10	120	-55 to +150
TSP10S45SP	10	45	TO-277	5V/1.5A	0.41@10A	0.22@2A	100	50	280	-55 to +150
TSP10L100P6	10	100	SMP6	12V/2A	0.63@10A	0.58@10A	60	10	160	-55 to +150
TSP10L200P6	10	200	SMP6	24V1A	0.72@3A	0.66@3A	20	40	160	-55 to +150
TSP10L120D-S	10	120	TO-252	18V/1.5A	0.75@10A	0.4@2A	20	50	180	-55 to +150
TSP10L200D-S	10	200	TO-252	24V/1A	0.82@10A	0.77@10A	5	0.08	180	-55 to +150
TSP10V150D-S	10	150	TO-252	20V/1.5A	0.71@10A	0.52@2A	50	10	280	-55 to +150
TSP10L300D-S	10	300	TO-252	48V2A	0.71@1A	0.66@1A	5	200	150	-55 to +150
TSP10S150D-S	10	150	TO-252	20V/1.5A	0.71@10A	0.52@2A	50	10	280	-55 to +150
TSP10V120D-S	10	120	TO-252	12V2A	0.43@2A	0.38@2A	20	50	180	-55 to +150
TSP10L100D-S	10	100	TO-252	12V/1.8A	0.64@10A	0.32@1.5A	15	10	160	-55 to +150
TSA10A45	10	45	DO-201AD	5V2A	0.35@2A	0.30@2A	60	20	150	-55 to +150
TSA10L100	10	100	DO-201AD	12V/1.8A	0.64@10A	0.35@2A	60	40	100	-55 to +150
TSA10L120	10	120	DO-201AD	18V/1.8A	0.7@10A	0.42@3A	50	10	220	-55 to +150
TSA10L300	10	300	DO-201AD	42V/1.5A	0.86@10A	0.55@3A	5	0.08	220	-55 to +150
TSA10L45	10	45	DO-201AD	5V/2A	0.42@10A	0.23@2A	150	15	260	-55 to +150
TSA10L60	10	60	DO-201AD	9V/2A	0.47@10A	0.36@5A	100	20	220	-55 to +150
TSA10L80	10	80	DO-201AD	12V/1.8A	0.56@10A	0.42@2A	10	10	160	-55 to +150
TSA10V120	10	120	DO-201AD	24V/1.5A	0.80@10A	0.43@3A	60	50	200	-55 to +150
TSA10V150	10	150	DO-201AD	24V/2A	0.47@2A	0.42@2A	100	30	180	-55 to +150
TSA10V60	10	60	DO-201AD	9V/2A	0.45@10A	0.31@3A	80	10	250	-55 to +150
TSA10A100	10	100	DO-201AD	12V/2A	0.77@10A	0.72@10A	20	40	160	-55 to +150
TSA10A80	10	80	DO-201AD	24V/1.5A	0.44@2A	0.39@2A	50	20	160	-55 to +150
TSA10A60	10	60	DO-201AD	9V/1.5A	0.55@10A	0.5@10A	10	10	120	-55 to +150
TSA10L100-VK	10	100	DO-201AD	12V/1.8A	0.64@10A	0.35@2A	60	40	100	-55 to +150
TSR10L100CTF-S	10	100	TO-220F	12V/2A	0.44@5A	0.39@2A	40	20	160	-55 to +150
TSR10L150CTF-S	10	150	TO-220F	12V/2A	0.59@2A	0.51@2A	50	5	160	-55 to +150
TSR10V150CTF-S	10	150	TO-220F	12V/2A	0.56@2A	0.50@2A	50	10	180	-55 to +150
TSR10L350CTF-S	10	350	TO-220F	48V2A	0.75@2A	0.70@2A	20	10	160	-55 to +150
TSR10L300CTF-S	10	300	TO-220F	42V/1.5A	0.71@10A	0.66@1A	1	10	100	-55 to +150
TSR10S150CTF-S	10	150	TO-220F	20V/1.5A	0.52@5A	0.5@2A	10	5	200	-55 to +150
TSR10L200CTF-S	10	200	TO-220F	24V/2A	0.8@10A	0.75@10A	50	1	160	-55 to +150
TSR10L200CTF	10	200	TO-220F	24V/1.5A	0.82@5A	0.72@3A	5	0.08	160	-55 to +150
TSR10V150CTF	10	150	TO-220F	20V/1.5A	0.71@10A	0.52@2A	100	30	220	-55 to +150
TSR10L100CT-S	10	100	TO-220AB	12V/2A	0.44@5A	0.39@2A	100	20	160	-55 to +150
TSR10L150CT-S	10	150	TO-220AB	20V/1.5A	0.62@5A	0.52@2A	10	2	200	-55 to +150
TSR10S100CT-S	10	100	TO-220AB	12V/2A	0.41@5A	0.37@2A	20	30	230	-55 to +150
TSR10V150CT-S	10	150	TO-220AB	20V/1.5A	0.56@2A	0.50@2A	50	10	180	-55 to +150
TSR10S150CT-S	10	150	TO-220AB	20V/1.5A	0.52@2A	0.47@2A	50	10	180	-55 to +150
TSR10L300CT-S	10	300	TO-220AB	42V/2A	0.85@10A	0.8@10A	20	10	150	-55 to +150
TSR10L200CT-S	10	200	TO-220AB	24V/2A	0.8@10A	0.75@10A	50	1	160	-55 to +150
TSP12L100SP	12	100	TO-277	12V/1.5A	0.64@12A	0.30@1.5A	80	20	200	-55 to +150
TSA12L100	12	100	DO-201AD	12V/2A	0.64@12A	0.34@2A	80	20	200	-55 to +150
TSP15L65SP	15	65	TO-277	9V/1.5A	0.49@15A	0.27@2.5A	200	100	280	-55 to +150
TSP15L100SP	15	100	TO-277	12V/1.5A	0.48@5A	0.43@5A	200	30	180	-55 to +150
TSP15S150SP	15	150	TO-277	24V/1.5A	1.05@15A	0.35@1A	50	10	200	-55 to +150
TSP15L50SP	15	50	TO-277	5V/2.4A	0.48@15A	0.26@2.4A	60	30	280	-55 to +150
TSP15L60SP	15	60	TO-277	5V3A	0.39@3A	0.35@3A	60	5	180	-55 to +150
TSP15L80SP	15	80	TO-277	12V/1.5A	0.59@15A	0.39@3A	50	20	180	-55 to +150
TSP15P150D-S	15	150	TO-252	12V/1A	0.60@2A	0.55@2A	1	5	220	-55 to +150
TSA15L45	15	45	DO-201AD	5V/2.4A	0.46@15A	0.28@3A	200	50	280	-55 to +150
TSA15L80	15	80	DO-201AD	12V/2A	0.59@15A	0.39@3A	50	20	180	-55 to +150
TSA15P80	15	80	DO-201AD	12V/2A	0.54@15A	0.39@3A	50	20	180	-55 to +150
TSA15V60	15	60	DO-201AD	9V/2A	0.52@15A	0.42@10A	150	30	280	-55 to +150
TSA15S150	15	150	DO-201AD	24V/1A	1.05@15A	0.98@15A	50	5	180	-55 to +150
TSA15A80	15	80	DO-201AD	12V/2A	0.65@15A	0.6@15A	50	20	160	-55 to +150
TSA15L60	15	60	DO-201AD	9V/2A	0.63@15A	0.58@15A	60	5	180	-55 to +150
TSA16L300	16	300	DO-201AD	42V/1.5A	0.71@8A	0.65@5A	70	5	180	-55 to +150
TSP20L60SP	20	60	TO-277	5V/2.4A	0.55@20A	0.44@10A	150	20	320	-55 to +150
TSP20L80SP	20	80	TO-277	12V3A	0.43@2A	0.38@2A	100	10	280	-55 to +150
TSP20V100SP	20	100	TO-277	12V/3A	0.40@3A	0.36@3A	90	10	220	-55 to +150
TSP20V80SP	20	80	TO-277	12V/2A	0.60@20A	0.29@2A	150	30	220	-55 to +150
TSP20V120SP	20	120	TO-277	24V/1A	0.73@20A	0.36@2A	50	10	220	-55 to +150
TSP20V80P6	20	80	SMP6	12V/2A	0.60@20A	0.29@2A	150	30	220	-55 to +150
TSP20A150D-S	20	150	TO-252	24V/3A	0.81@10A	0.76@10A	50	10	200	-55 to +150
TSP20L120D	20	120	TO-252	20V3A	0.46@2A	0.41@2A	20	50	180	-55 to +150
TSP20L45D	20	45	TO-252	5V/3A	0.44@10A	0.39@10A	100	10	180	-55 to +150
TSP20A45D	20	45	TO-252	5V3A	0.41@2A	0.36@2A	50	10	150	-55 to +150
TSP20V100D	20	100	TO-252	12V/1.5A	0.44@10A	0.40@3A	20	5	220	-55 to +150
TSP20V120D-S	20	120	TO-252	12V3A	0.44@2A	0.39@2A	50	10	220	-55 to +150
TSP20B45D	20	45	TO-252	5V3A	0.38@3A	0.33@3A	300	50	200	-55 to +150
TSP20L100D-S	20	100	TO-252	12V3A	0.57@5A	0.52@5A	100	30	180	-55 to +150
TSP20V80D-S	20	80	TO-252	12V3A	0.6@20A	0.55@20A	90	10	260	-55 to +150
TSR20V100CTB	20	100	TO-263	12V3A	0.42@2A	0.37@2A	100	10	160	-55 to +150
TSR20V80CTB-S	20	80	TO-263	12V/3A	0.6@20A	0.55@20A	90	10	280	-55 to +150
TSR20S150CTB	20	150	TO-263	24V3A	0.55@2A	0.50@2A	60	10	220	-55 to +150
TSR20L300CTB	20	300	TO-263	42V3A	0.72@3A	0.66@3A	50	1	280	-55 to +150
TSR20L200CTB	20	200	TO-263	20V3A	0.72@3A	0.63@3A	100	10	220	-55 to +150
TSA20L80	20	80	DO-201AD	12V/2A	0.64@20A	0.28@3A	150	30	180	-55 to +150
TSR20V80CTF-S	20	80	TO-220F	12V/3A	0.39@3A	0.34@3A	90	10	280	-55 to +150
TSR20S80CTF-S	20	80	TO-220F	12V/3A	0.57@20A	0.52@20A	100	10	280	-55 to +150
TSR20A60CTF	20	60	TO-220F	5V3A	0.39@2A	0.33@2A	80	20	180	-55 to +150
TSR20L100CTF	20	100	TO-220F	12V/3A	0.61@10A	0.56@5A	50	20	160	-55 to +150
TSR20L150CTF	20	150	TO-220F	24V/2A	0.85@10A	0.52@2A	50	10	200	-55 to +150
TSR20L200CTF	20	200	TO-220F	36V/3A	0.85@10A	0.68@3A	5	0.08	180	-55 to +150
TSR20L300CTF	20	300	TO-220F	42V/3A	0.86@10A	0.75@5A	5	0.08	280	-55 to +150
TSR20L45CTF	20	45	TO-220F	5V/3.4A	0.48@10A	0.28@3.4A	50	20	220	-55 to +150
TSR20L60CTF	20	60	TO-220F	9V/3A	0.65@10A	0.45@10A	500	100	180	-55 to +150
TSR20S100CTF	20	100	TO-220F	12V/3A	0.62@10A	0.43@5A	70	50	230	-55 to +150
TSR20V100CTF	20	100	TO-220F	12V/3A	0.65@10A	0.34@3A	100	100	180	-55 to +150
TSR20V120CTF	20	120	TO-220F	19V/3.25A	0.75@10A	0.71@10A	50	10	220	-55 to +150
TSR20V200CTF	20	200	TO-220F	36V/4A	0.76@10A	0.61@3A	100	10	220	-55 to +150
TSR20L350CTF	20	350	TO-220F	48V/3A	0.89@10A	0.68@3A	5	0.08	220	-55 to +150
TSR20S150CTF	20	150	TO-220F	24V/2A	1.05@10A	0.45@2A	50	10	200	-55 to +150
TSR20V80CT-S	20	80	TO-220AB	12V/3A	0.68@20A	0.63@20A	90	10	280	-55 to +150
TSR20S80CT-S	20	80	TO-220AB	12V3A	0.38@3A	0.30@3A	100	10	280	-55 to +150
TSR20A60CT	20	60	TO-220AB	5V/3.5A	0.33@10A	0.27@2A	80	10	200	-55 to +150
TSR20L100CT	20	100	TO-220AB	12V/3A	0.61@10A	0.56@5A	50	20	160	-55 to +150
TSR20L150CT	20	150	TO-220AB	24V/2A	0.85@10A	0.52@2A	50	10	200	-55 to +150
TSR20L200CT	20	200	TO-220AB	36V/3A	0.85@10A	0.68@3A	5	0.08	180	-55 to +150
TSR20L300CT	20	300	TO-220AB	42V/3A	0.86@10A	0.75@5A	5	0.08	280	-55 to +150
TSR20L45CT	20	45	TO-220AB	5V/3.4A	0.48@10A	0.28@3.4A	50	20	220	-55 to +150
TSR20L60CT	20	60	TO-220AB	9V/3A	0.65@10A	0.45@10A	500	100	180	-55 to +150
TSR20V100CT	20	100	TO-220AB	12V/3A	0.65@10A	0.34@3A	100	100	180	-55 to +150
TSR20V120CT	20	120	TO-220AB	19V/3.25A	0.75@10A	0.71@10A	50	10	220	-55 to +150
TSR20S150CT	20	150	TO-220AB	24V/2A	1.05@10A	0.45@2A	50	10	200	-55 to +150
TSR20A100CT	20	100	TO-220AB	12V/3A	0.6@10A	0.54@5A	10	2	120	-55 to +150
TSR20P200CKF	20	200	TO-262F	24V3A	0.68@2A	0.60@2A	10	10	180	-55 to +175
TSR20P100CKF	20	100	TO-262F	12V3A	0.63@2A	0.52@2A	1	5	150	-55 to +175
TSP30L100D-S	30	100	TO-252	12V4A	0.48@5A	0.43@5A	70	50	230	-55 to +150
TSR30L120CTB	30	120	TO-263	20V4A	0.47@3A	0.42@3A	60	5	280	-55 to +150
TSR30L80CTB	30	80	TO-263	12V/5A	0.6@15A	0.55@15A	100	5	220	-55 to +150
TSR30L200CTB	30	200	TO-263	24V/4A	0.79@15A	0.72@15A	20	10	220	-55 to +150
TSR30L150CTB	30	150	TO-263	24V/3A	1.0@15A	0.95@15A	10	2	220	-55 to +150
TSR30P150CTB	30	150	TO-263	24V/5A	0.8@15A	0.55@2A	1	1	220	-55 to +175
TSR30L45CTF-S	30	45	TO-220AB	5V/5A	0.63@30A	0.58@30A	120	30	280	-55 to +150
TSR30A150CTF	30	150	TO-220F	24V/3A	0.85@15A	0.52@3A	20	10	220	-55 to +150
TSR30L100CTF	30	100	TO-220F	12V/5A	0.67@15A	0.36@5A	70	50	230	-55 to +150
TSR30L120CTF	30	120	TO-220F	20V/4.5A	0.80@15A	0.43@3A	60	50	280	-55 to +150
TSR30L200CTF	30	200	TO-220F	24V/4A	0.79@15A	0.61@4A	100	10	220	-55 to +150
TSR30L45CTF	30	45	TO-220F	5V/5A	0.48@15A	0.27@5A	200	30	280	-55 to +150
TSR30L60CTF	30	60	TO-220F	12V/3A	0.59@15A	0.36@5A	200	30	280	-55 to +150
TSR30L80CTF	30	80	TO-220F	12V/5A	0.60@15A	0.38@5A	200	40	220	-55 to +150
TSR30V100CTF	30	100	TO-220AB	12V/3.6A	0.5@5A	0.4@5A	50	10	280	-55 to +150
TSR30L300CTF	30	300	TO-220F	42V/4A	0.86@15A	0.65@5A	70	5	280	-55 to +150
TSR30L100CTF-A	30	100	TO-220F	12V4A	0.43@2A	0.37@2A	50	10	220	-55 to +150
TSR30L150CTF	30	150	TO-220F	24V/4A	0.80@15A	0.58@3A	50	10	220	-55 to +150
TSR30P150CTF	30	150	TO-220	24V/4A	0.8@15A	0.55@2A	1	1	220	-55 to +175
TSR30V60CTF	30	60	TO-220F	9V/4A	0.38@15A	0.34@5A	50	30	280	-55 to +150
TSR30A200CTF	30	200	TO-220F	24V5A	0.69@3A	0.63@3A	100	10	220	-55 to +150
TSR30L45CT-S	30	45	TO-220AB	5V/5A	0.63@30A	0.58@30A	120	30	280	-55 to +150
TSR30A150CT	30	150	TO-220AB	24V/3A	0.85@15A	0.52@3A	20	10	220	-55 to +150
TSR30L100CT	30	100	TO-220AB	12V/5A	0.67@15A	0.36@5A	70	50	230	-55 to +150
TSR30L120CT	30	120	TO-220AB	20V/4.5A	0.80@15A	0.43@3A	60	50	280	-55 to +150
TSR30L150CT	30	150	TO-220AB	24V/4A	0.80@15A	0.58@3A	50	10	220	-55 to +150
TSR30L45CT	30	45	TO-220AB	5V/5A	0.48@15A	0.27@5A	200	30	280	-55 to +150
TSR30L80CT	30	80	TO-220AB	12V/5A	0.60@15A	0.38@5A	200	40	220	-55 to +150
TSR30V100CT	30	100	TO-220AB	12V5A	0.45@5A	0.40@5A	50	10	280	-55 to +150
TSR30P150CT	30	150	TO-220	24V/4A	0.8@15A	0.55@2A	1	1	220	-55 to +175
TSR30V60CT	30	60	TO-220AB	9V/4A	0.38@15A	0.34@5A	50	30	280	-55 to +150
TSR30L300CT	30	300	TO-220AB	42V/4A	0.86@15A	0.65@5A	70	5	280	-55 to +150
TSR30V300CT	30	300	TO-220AB	42V/4A	1.25@15A	1.10@15A	1	10	280	-55 to +150
TSR30L200CT	30	200	TO-220AB	24V/4A	0.79@15A	0.61@4A	100	10	220	-55 to +150
TSR30L60CT	30	60	TO-220AB	12V/3A	0.59@15A	0.36@5A	200	30	280	-55 to +150
TSR30L300PT	30	300	TO-247S	42V/5A	0.76@15A	0.65@5A	70	5	280	-55 to +150
TSR30L150PTS	30	150	TO-247S	12V/6A	0.61@3A	0.55@3A	50	5	220	-55 to +150
TSR30V400PTS	30	400	TO-247S	48V/5A	0.75@3A	0.70@3A	50	5	300	-55 to +150
TSR30V300PTS	30	300	TO-247S	42V/5A	0.85@15A	0.8@15A	50	5	300	-55 to +150
TSR30P200CKF	30	200	TO-262F	24V5A	0.68@2A	0.60@2A	10	10	200	-55 to +175
TSR40S150CTB	40	150	TO-263	20V5A	0.43@2A	0.38@2A	50	10	250	-55 to +150
TSR40L120CTB	40	120	TO-263	16V/5A	0.76@20A	0.68@20A	90	10	280	-55 to +150
TSR40L100CTB	40	100	TO-263	12V/5A	0.67@20A	0.61@20A	60	10	280	-55 to +150
TSR40L200CTB	40	200	TO-263	24V/4A	0.81@20A	0.73@20A	50	2	280	-55 to +150
TSR40L100CTF	40	100	TO-220F	12V/6A	0.66@20A	0.38@6A	90	10	280	-55 to +150
TSR40L200CTF	40	200	TO-220F	24V/5A	0.88@20A	0.61@5A	100	10	220	-55 to +150
TSR40A100CTF	40	100	TO-220F	12V5A	0.47@3A	0.42@3A	60	50	220	-55 to +150
TSR40S150CTF	40	150	TO-220F	20V5A	0.45@2A	0.40@2A	50	10	250	-55 to +150
TSR40L60CTF	40	60	TO-220F	12V/5A	0.55@20A	0.42@10A	150	30	280	-55 to +150
TSR40L120CTF	40	120	TO-220F	16V/5A	0.46@20A	0.39@5A	50	10	280	-55 to +150
TSR40L45CT	40	45	TO-220AB	5V/5A	0.52@20A	0.30@6A	200	20	280	-55 to +150
TSR40L60CT	40	60	TO-220AB	12V/5A	0.55@20A	0.42@10A	150	30	280	-55 to +150
TSR40L200CT	40	200	TO-220AB	24V/5A	0.88@20A	0.61@5A	100	10	220	-55 to +150
TSR40A100CT	40	100	TO-220AB	12V/6A	0.47@20A	0.42@3A	20	30	280	-55 to +150
TSR40S150CT	40	150	TO-220AB	24V/5A	0.51@20A	0.44@3A	20	4	220	-55 to +150
TSR40L100CT	40	100	TO-220AB	12V/6A	0.66@20A	0.38@6A	90	10	280	-55 to +150
TSR40A120CT	40	120	TO-220AB	16V/5A	0.9@20A	0.83@20A	60	10	280	-55 to +150
TSR40V300CT	40	300	TO-220AB	48V/3A	1.0@20A	0.96@20A	50	5	280	-55 to +150
TSR40L100PTS	40	100	TO-247S	12V6A	0.7@20A	0.64@20A	100	5	280	-55 to +150
TSR40S150PT	40	150	TO-247	24V/5A	1.0@20A	0.86@20A	50	10	220	-55 to +150
TSR40L300PT	40	300	TO-3P	48V/5A	0.94@20A	0.72@5A	5	0.08	280	-55 to +150
TSR40V300PT	40	300	TO-247	48V/5A	1.0@20A	0.95@20A	50	5	280	-55 to +150
TSR60L60CTF	60	60	TO-220F	12V/7A	0.45@30A	0.41@10A	30	6	280	-55 to +150
TSR60L45CT	60	45	TO-220AB	5V/8A	0.51@30A	0.26@3A	200	50	380	-55 to +150
TSR60L60CT	60	60	TO-220AB	12V/7A	0.45@30A	0.41@10A	30	6	280	-55 to +150
TSR60L100CT	60	100	TO-220AB	12V/6A	0.38@30A	0.32@3A	40	10	380	-55 to +150
TSR60L100PTS	60	100	TO-247S	12V/8A	0.69@30A	0.64@30A	100	10	380	-55 to +150
TSR60V300PT	60	300	TO-247	48V/6A	1.3@30A	1.25@30A	50	5	300	-55 to +150
TSR60L60PTS	60	60	TO-247S	12V/8A	0.59@30A	0.55@30A	150	10	280	-55 to +150
TSR60L60PT	60	60	TO-3P	12V/8A	0.45@30A	0.41@10A	30	6	280	-55 to +150

沃尔德肖特基二极管采用先进的封装工艺，具有低正向压降的特点。电流涵盖了1A到60A，电压从40V到200V全覆盖，可以满足电源产品的高效率，高可靠性的需求。

沃尔德快恢复二极管采用先进的封装工艺，电压从100V到1700V，电流从1A到300A,反向恢复时间从16ns到500ns ,适用于PFC电路，高频高压电源等。

沃尔德LOW VF快恢复二极管具有低的VF值、低漏电流，应用于PFC电路、高频高压电路、次级整流电路。

沃尔德共阴共阳快恢复二极管具有一致性好，低VF值、低Trr、低漏电流的特性，应用于高频桥式整流电路，正负压输出整流电路、高频高压大电流电路。
