普通桥

产品概述

整流桥产品是由四只整流硅芯片作桥式连接，有四个引出脚。两只二极管负极的连接点是全桥直流输出端的“正极”，两只二极管正极的连接点是全桥直流输出端的“负极”，外用绝缘塑封而成。

产品特点

整流桥

整流桥当中的整流，是通过二极管的单向导通性来完成工作；简单点说，二极管是单向的，它是正向导通和反向截止。二极管只允许电流单向通过，所以将其接入交流电路时，能使电路中的电流只按单向流动，即所谓“整流”。

电路应用

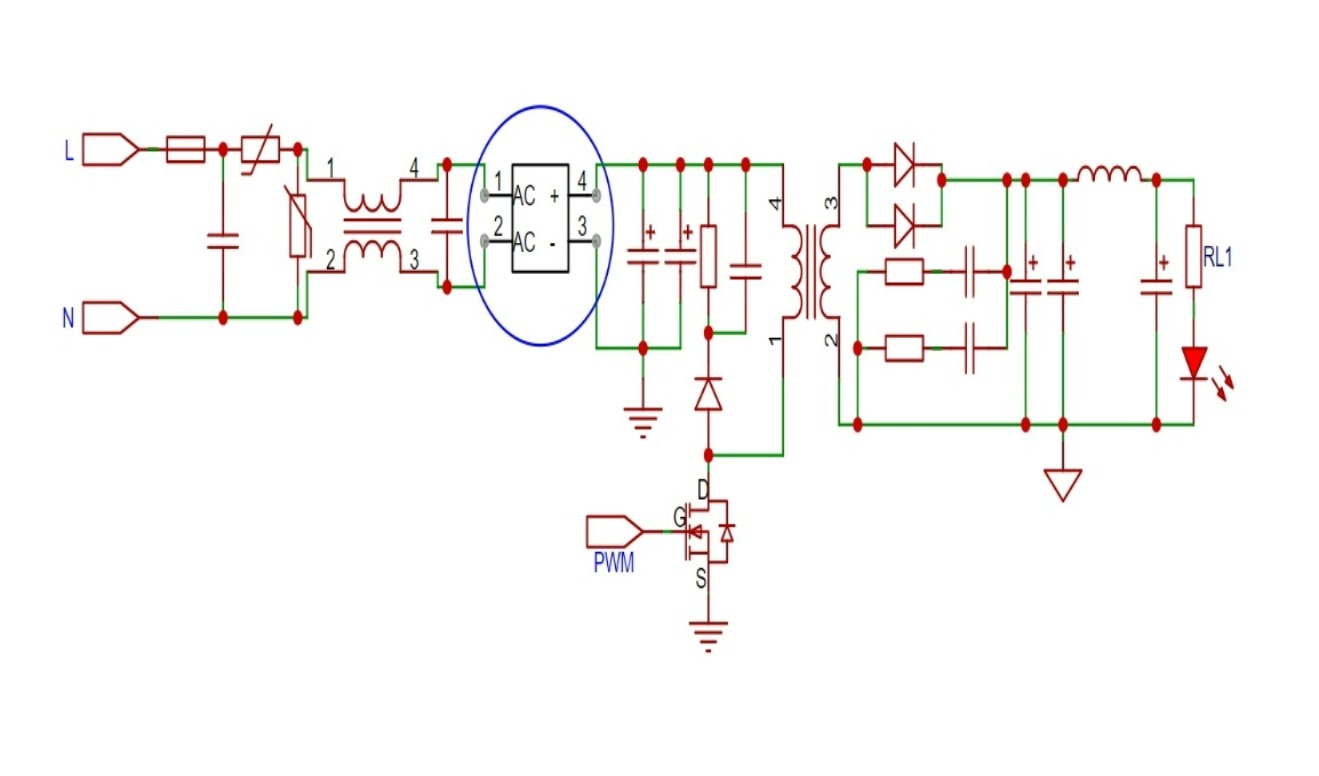

整流桥是利用二极管管单向导电性，把交流电变换成直流电。

应用领域

Household Appliance

Adaptor

LED Power Supply

Power Supply for Industrial

产品选型

Type	Current	Voltage	Package	Application	VF @25℃	IR(uA) 25℃	IR(mA) 125℃	IFSM (A)	Tj（℃）	Download
UM10B-W	0.6	1000	UMB	5W	1.1@0.6A	5	0.1	35	-55 to +150
NB8M	0.8	1000	NBS	5W	1.0@0.4A	5	0.5	25	-55 to +150
ABS0816	0.8	1600	ABS	5W	1.2@0.4A	5	0.1	25	-55 to +150
MB10F	1	1000	MBF	10W	1.1@1A	10	0.5	30	-55 to +150
MB10F-A	1	1000	MBF	10W	1.3@1A	10	0.5	30	-55 to +150
ABS10M	1	1000	ABS	12W	1.0@1A	5	0.4	35	-55 to +150
DB107S	1	1000	DBS	12W	1.1@1A	5	0.1	40	-55 to +150
DB107	1	1000	DB	12W	1.1@1A	5	0.5	30	-55 to +150
MB10S	1	1000	MBS	10W	1.0@1A	5	0.04	30	-55 to +150
ABS20M	2	1000	ABS	24W	1.1@1A	5	0.1	55	-55 to +150
ABS20MG	2	1000	ABS	24W	1.1@1A	5	0.1	70	-55 to +150
DB207S	2	1000	DBS	24W	1.0@1A	5	0.5	60	-55 to +150
GBP210	2	1000	GBP	24W	1.1@1A	5	0.5	60	-55 to +150
D3K210	2	1000	D3K	30W	1.1@1A	5	0.5	70	-55 to +150
KBP206	2	600	KBP	24W	1.1@1A	5	0.5	60	-55 to +150
GBL206	2	600	GBL	24W	1.1@1A	5	0.5	80	-55 to +150
DB207	2	1000	DB	24W	1.0@1A	5	0.5	60	-55 to +150
ABS30J	3	600	ABS	30W	1.0@1.5A	5	0.1	85	-55 to +150
MSB30M	3	1000	MSB	36W	1.0@1.5A	5	0.5	120	-55 to +150
DB307S	3	1000	DBS	36W	1.1@1.5A	5	0.5	80	-55 to +150
GBP310	3	1000	GBP	36W	1.1@1.5A	5	0.5	90	-55 to +150
D3K310	3	1000	D3K	36W	1.1@1.5A	5	0.5	80	-55 to +150
KBP310	3	1000	KBP	36W	1.0@1.5A	5	0.5	80	-55 to +150
KBP310B	3	1000	KBP	36W	1.1@1.5A	5	0.5	80	-55 to +150
MSB40M	4	1000	MSB	48W	1.2@2A	5	0.5	120	-55 to +150
MSB40MA	4	1000	MSB	48W	1.2@2A	5	0.5	120	-55 to +150
LBS40M	4	1000	LBS	48W	0.93@2A	5	0.1	120	-55 to +150
LSB40M	4	1000	LSB	48W	1.1@2A	5	0.1	120	-55 to +150
GBP410	4	1000	GBP	66W	1.1@2A	5	0.5	120	-55 to +150
GBP410-S	4	1000	GBP	66W	1.1@2A	5	0.5	120	-55 to +150
D3K410	4	1000	D3K	48W	1.1@2A	5	0.5	80	-55 to +150
D3K410G	4	1000	D3K	48W	1.1@2A	5	0.5	80	-55 to +150
GBL406	4	600	GBL	48W	1.1@2A	5	0.5	120	-55 to +150
GBL410	4	1000	GBL	48W	1.1@2A	5	0.5	70	-55 to +150
GBL410G	4	1000	GBL	60W	1.1@2A	5	0.5	160	-55 to +150
GBU410	4	1000	GBU	60W	1.1@2A	5	0.5	120	-55 to +150
GBU410G	4	1000	GBU	60W	1.0@2A	5	0.5	170	-55 to +150
MSB60M	6	1000	MSB	72W	1.1@3A	5	0.5	150	-55 to +150
LBS60M	6	1000	LBS	68W	1.0@3A	5	0.1	170	-55 to +150
LSB60M	6	1000	LSB	60W	1.0@3A	5	0.5	200	-55 to +150
GBP610	6	1000	GBP	72W	1.1@3A	5	0.5	160	-55 to +150
D3K610	6	1000	D3K	72W	1.1@3A	5	0.5	170	-55 to +150
GBL610	6	1000	GBL	72W	1.1@3A	5	0.5	160	-55 to +150
KBJ610	6	1000	KBJ	72W	1.03@3A	10	0.5	150	-55 to +150
GBU608	6	800	GBU	72W	1.05@3A	5	0.5	150	-55 to +150
GBU610	6	1000	GBU	72W	1.1@3A	5	0.5	150	-55 to +150
GBU610G	6	1000	GBU	72W	1.0@3A	5	0.5	175	-55 to +150
DB607	6	1000	DBM	72W	1.0@3A	5	0.5	150	-55 to +150
LBS80M	8	1000	LSB	72W	1.0@4A	5	0.1	200	-55 to +150
LSB80M	8	1000	LSB	72W	1.0@4A	5	0.5	200	-55 to +150
GBP810	8	1000	GBP	90W	1.1@4A	5	0.5	170	-55 to +150
GBP810-S	8	1000	GBP	90W	1.1@4A	5	0.5	170	-55 to +150
D3K810	8	1000	D3K	90W	1.1@4A	5	0.5	170	-55 to +150
GBL810	8	1000	GBL	100W	1.1@4A	5	0.5	175	-55 to +150
GBU810	8	1000	GBU	100W	1.1@4A	5	0.5	175	-55 to +150
HSB08K	8	800	HSB	60W	1.0@4A	5	0.5	180	-55 to +150
GBL1010	10	1000	GBL	120W	1.1@5A	5	0.5	200	-55 to +150
KBU1010	10	1000	KBU	140W	1.1@5A	5	0.5	200	-55 to +150
KBJ1006	10	600	KBJ	120W	1.1@5A	5	0.5	200	-55 to +150
KBJ1010	10	1000	KBJ	120W	1.1@5A	5	0.5	200	-55 to +150
KBJL1010	10	1000	KBJL	120W	0.9@5A	5	0.1	200	-55 to +150
GBU1008	10	800	GBU	120W	1.1@5A	5	0.5	200	-55 to +150
GBU1006	10	600	GBU	120W	1.1@5A	5	0.5	200	-55 to +150
GBU1010	10	1000	GBU	120W	1.1@5A	5	0.5	200	-55 to +150
GBU1010G	10	1000	GBU	120W	1.1@5A	5	0.5	220	-55 to +150
KBJ1510	15	1000	KBJ	180W	1.1@7.5A	5	0.5	250	-55 to +150
RBU1510	15	1000	RBU	150W	1.1@7.5A	5	0.5	220	-55 to +150
KBJL1510	15	1000	KBJL	180W	1.0@7.5A	5	0.1	220	-55 to +150
GBU1510	15	1000	GBU	180W	1.1@7.5A	5	0.5	220	-55 to +150
GBJ1510	15	1000	GBJ	180W	1.1@7.5A	5	0.5	220	-55 to +150
HSB15K	15	800	HSB	180W	1.0@7.5A	5	0.1	250	-55 to +150
GBJ2010	20	1000	GBJ	200W	1.1@10A	10	0.5	300	-55 to +150
KBJ2510C	25	1000	KBJ	240W	1.1@12.5A	5	0.5	330	-55 to +150
KBJ2510	25	1000	KBJ	180W	1.1@12.5A	5	0.5	330	-55 to +150
GBU2508	25	800	GBU	200W	1.05@12.5A	5	0.5	330	-55 to +150
GBU2510	25	1000	GBU	200W	1.1@12.5A	5	0.5	330	-55 to +150
GBJ2508	25	800	GBJ	240W	1.1@12.5A	5	0.5	330	-55 to +150
GBJ2516	25	1600	GBJ	240W	1.1@12.5A	5	0.5	350	-55 to +150
GBJ2510C	25	1000	GBJ	240W	1.05@12.5A	5	0.5	350	-55 to +150
GBJ2510	25	1000	GBJ	240W	1.1@12.5A	5	0.5	330	-55 to +150
HSB25K	25	800	HSB	200W	1.0@12.5A	5	0.5	270	-55 to +150
SGBJ2516	25	1600	SGBJ	300W	1.18@12.5A	/	3	350	-55 to +150
GBU3510	35	1000	GBU	260W	1.1@17.5A	5	0.5	330	-55 to +150
GBJ3510	35	1000	GBJ	280W	1.1@17.5A	5	0.5	400	-55 to +150
GBJ3516	35	1000	GBJ	360W	1.05@17.5A	5	0.5	450	-55 to +150
GBJ3516C	35	1600	GBJ	400W	1.05@17.5A	5	0.5	450	-55 to +150
GBJ3510C	35	1000	GBJ	280W	1.1@17.5A	5	0.5	400	-55 to +150
KBPC3516Z	35	1600	KBPC	300W	1.1@17.5A	10	0.5	400	-55 to +150
SKBPC3516	35	1600	SKBPC	300W	1.2@12A	10	0.5	400	-55 to +150
SGBJ3512	35	1200	SGBJ	360W	1.18@17.5A	/	3	400	-55 to +150
GBJ5010	50	1000	GBJ	450W	1.1@25A	5	0.5	500	-55 to +150
GBJ5010C	50	1000	GBJ	450W	1.1@25A	5	0.5	500	-55 to +150
KBPC5010	50	1000	KBPC	500W	1.1@25A	10	0.5	500	-55 to +150
SKBPC5016	50	1600	SKBPC	500W	1.1@25A	10	0.5	500	-55 to +150
SGBPC5016	50	1600	SGBPC	500W	1.1@25A	10	0.5	500	-55 to +150
DXB8010	80	1000	DXB	900W	1.1@25A	10	0.5	750	-55 to +150

沃尔德肖特基二极管采用先进的封装工艺，具有低正向压降的特点。电流涵盖了1A到60A，电压从40V到200V全覆盖，可以满足电源产品的高效率，高可靠性的需求。

沃尔德快恢复二极管采用先进的封装工艺，电压从100V到1700V，电流从1A到300A,反向恢复时间从16ns到500ns ,适用于PFC电路，高频高压电源等。

沃尔德LOW VF快恢复二极管具有低的VF值、低漏电流，应用于PFC电路、高频高压电路、次级整流电路。

沃尔德共阴共阳快恢复二极管具有一致性好，低VF值、低Trr、低漏电流的特性，应用于高频桥式整流电路，正负压输出整流电路、高频高压大电流电路。
